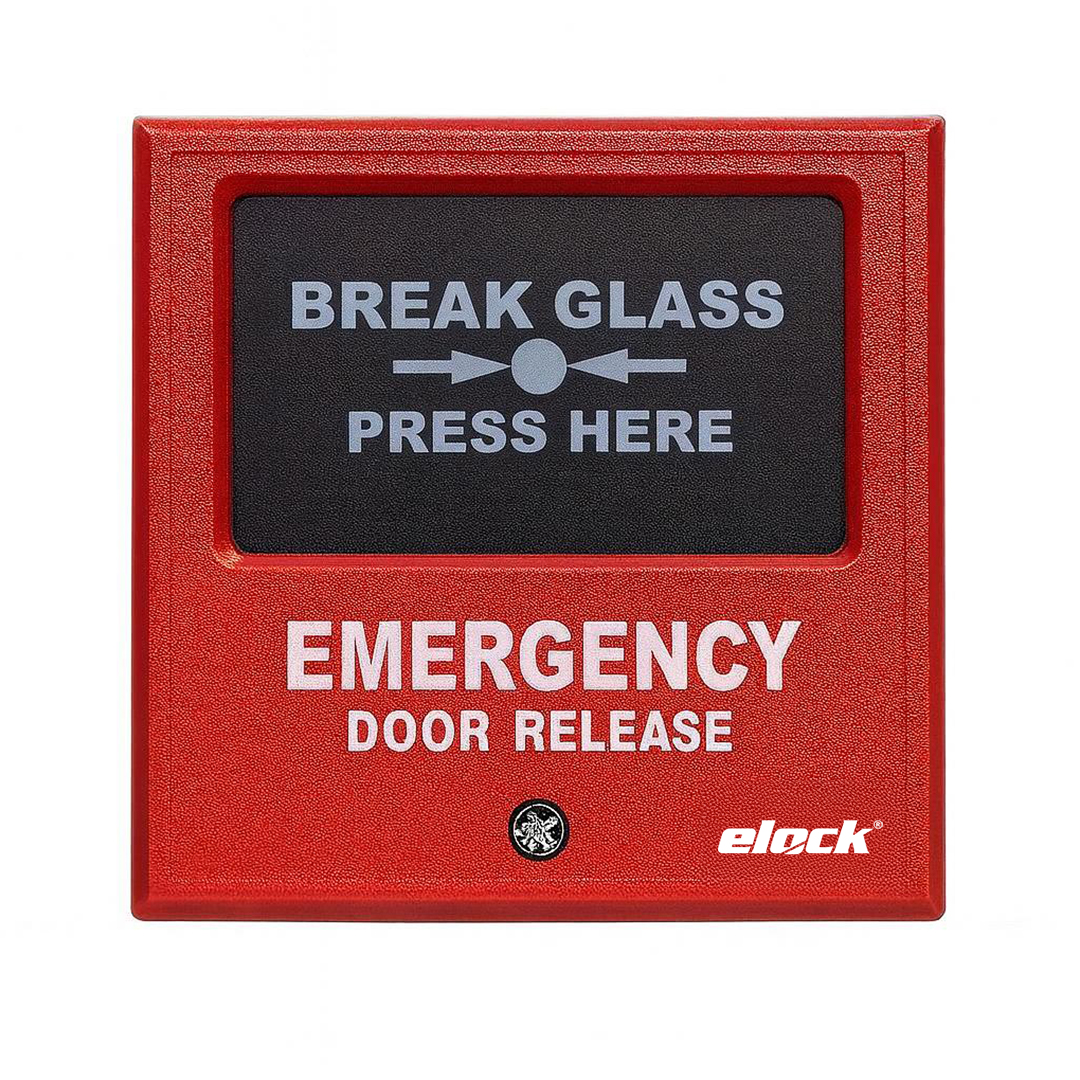

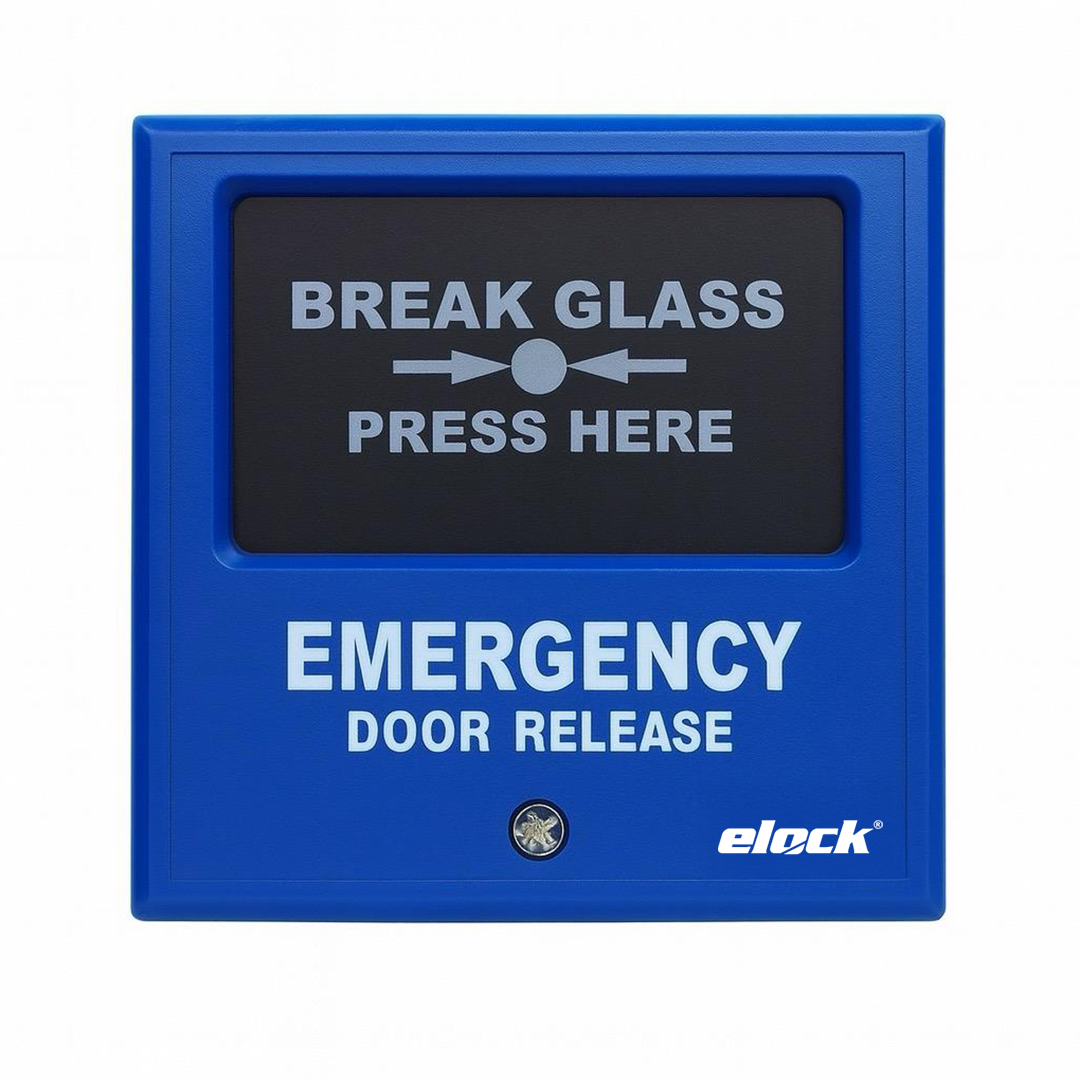

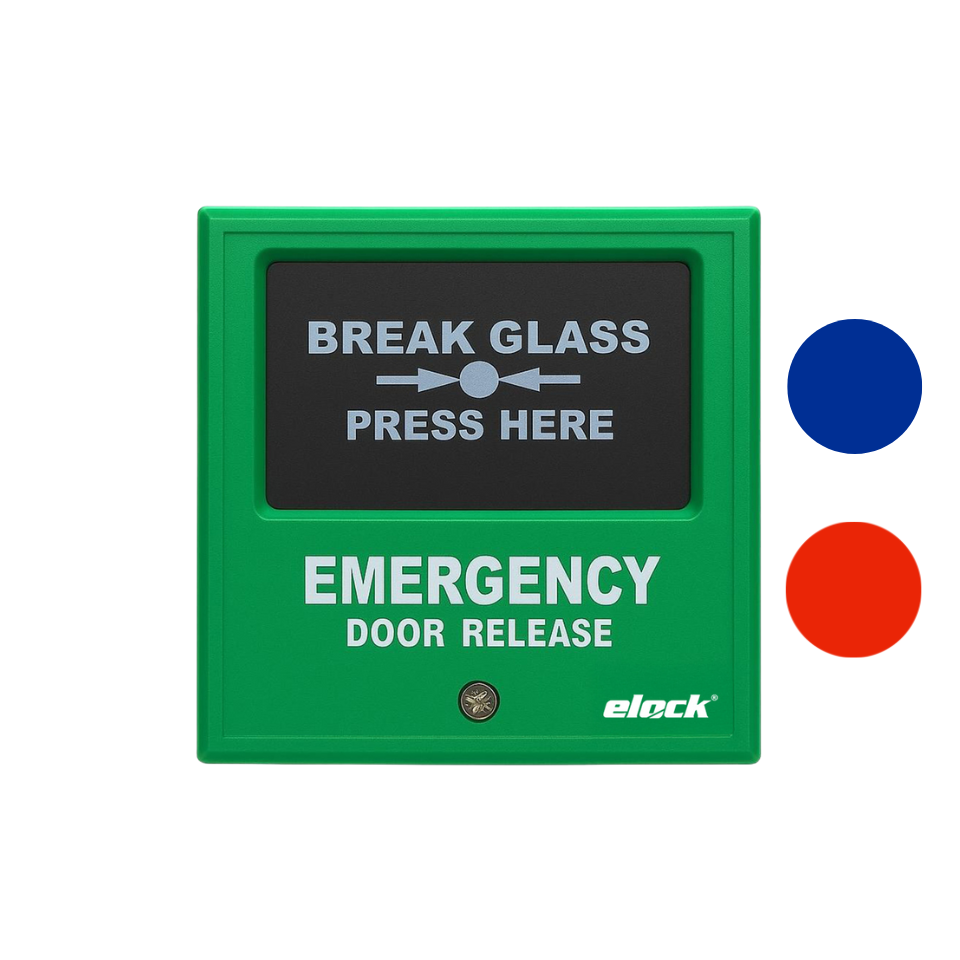

EL-EB4 Emergency Break Glass Door Release

The EL-EB4 Series provides a quick and safe manual override during emergency situations, making it an essential component in access control and fire safety systems.

It is resettable with a key, allowing for easy testing and maintenance without replacing parts. Designed for flexibility, it is suitable for both surface and flush mounting.

The glass panel is replaceable, ensuring long-term usability and cost efficiency. The unit is constructed from durable ABS PA-757 material.

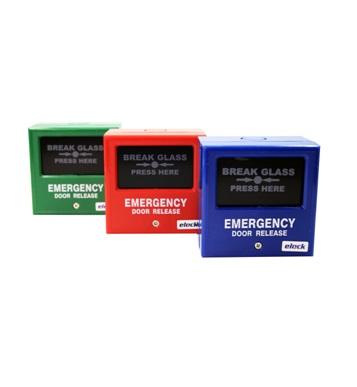

The EL-EB4 Series is available in green, red, and blue, allowing users to match the unit with specific safety or design requirements.

With compact dimensions of 87mm (L) x 87mm (W) x 52mm (H), it fits seamlessly into various installation environments while maintaining a strong and secure emergency release function.

Power Supply: DC12V / DC24V
Contact Rating: 10A @12V DC, 3A@48V DC, 10A@ 250V AC
Contact Type: N.O/ N.C/ COM
Material: ABS Plastic
Operating Temperature: -20°C to 55°C
Mechanical Life: 500,000 Tested Aging Test Qualified
Mounting Type: Surface Mount & Flush Mount
Dimension: 87 (L) x 87 (W) x 52 (H) mm
