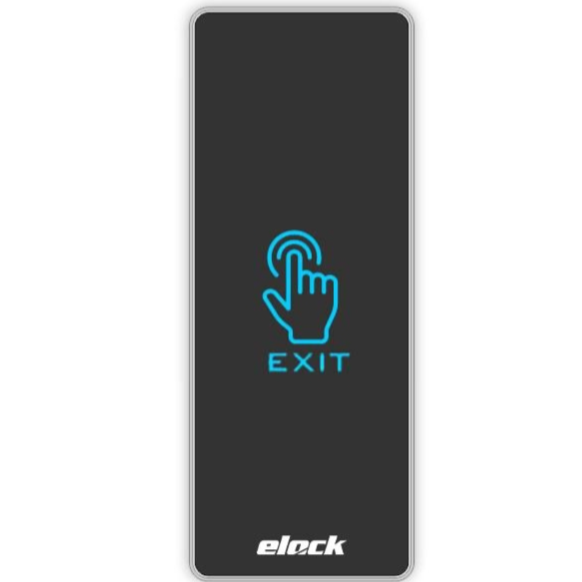

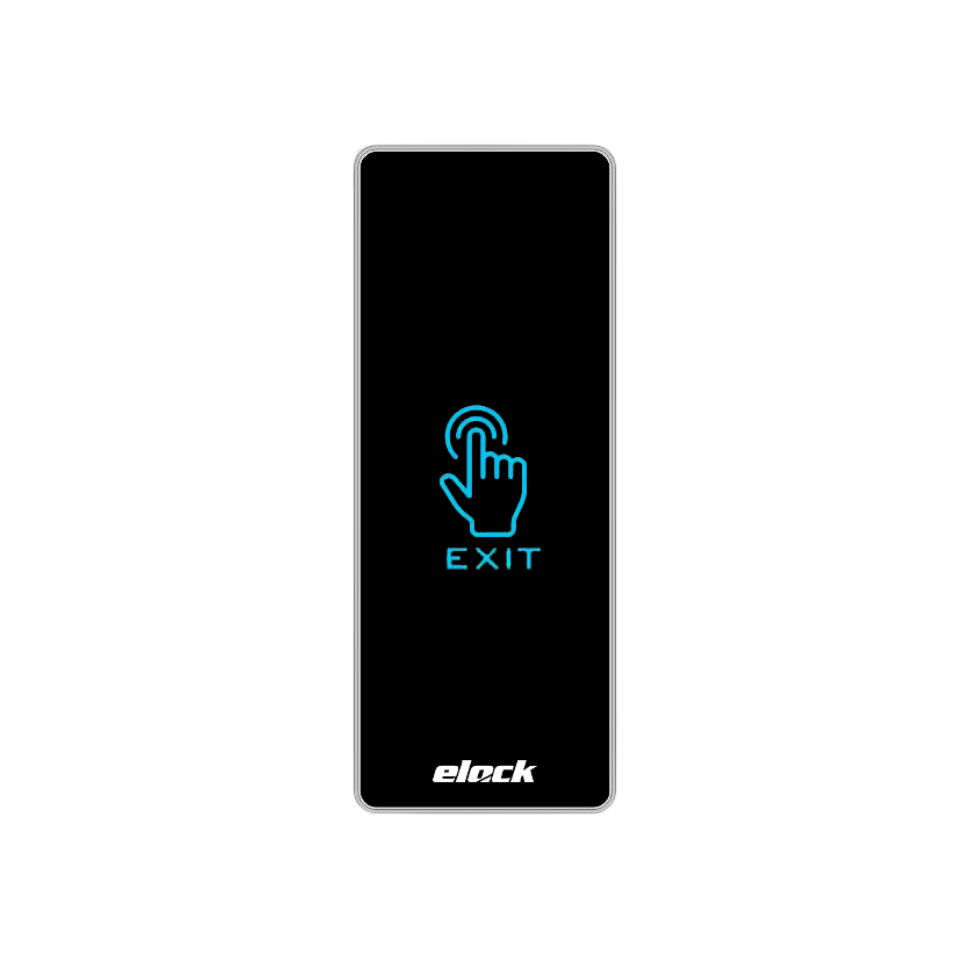

EL-PT4510 Waterproof Touch Exit Button

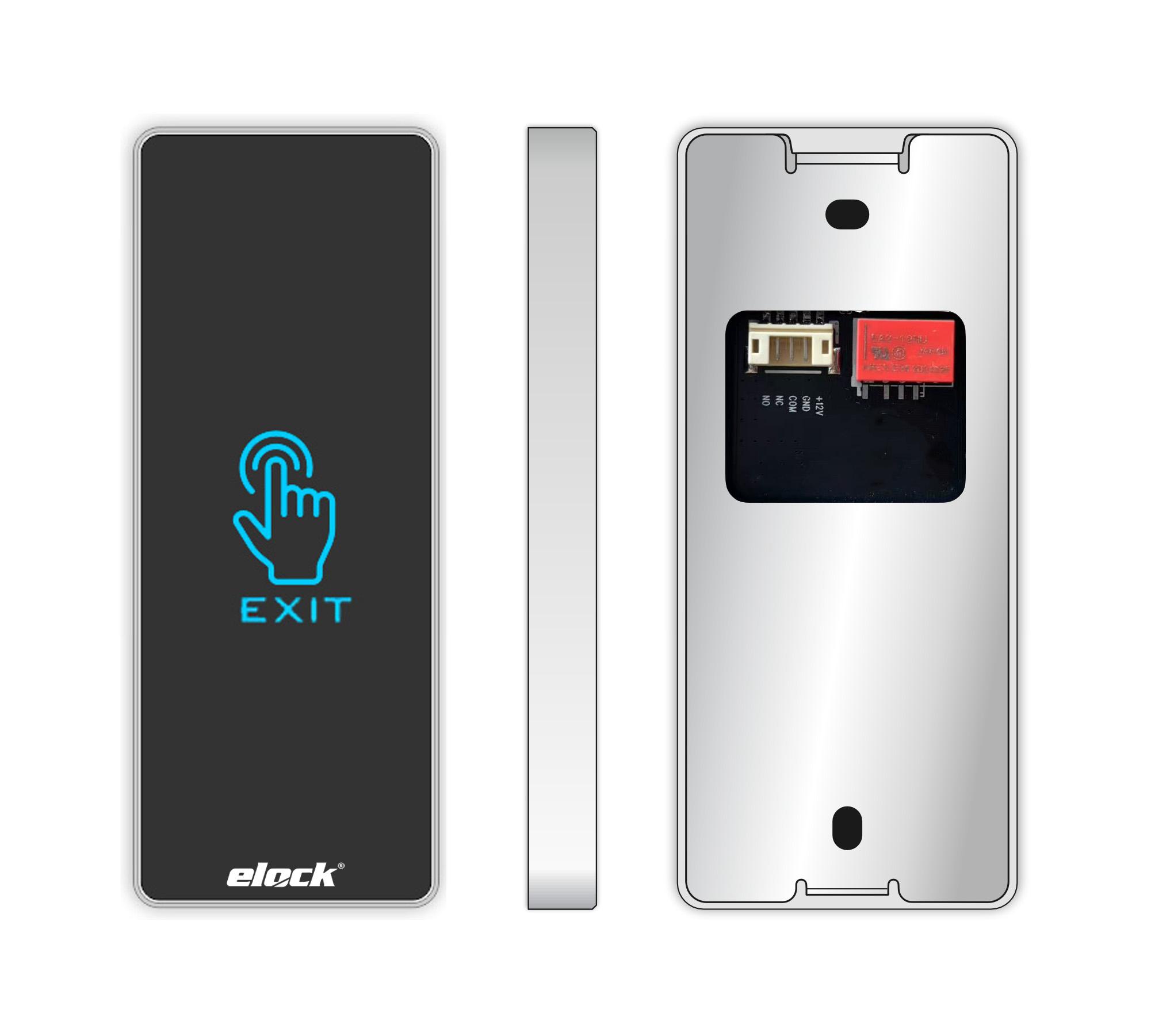

EL-PT4510 Waterproof Touch Exit Button is engineered for performance and built to last, combining elegant design with industrial-grade durability. Constructed from a high-strength aluminium frame and tempered glass panel, it stands out from typical plastic models, offering a sleek yet robust solution for modern access control systems.
With an IP67 rating, it’s dust-tight and waterproof—ideal for both indoor and outdoor use. It supports NO/NC/COM contact outputs, runs on DC12V/24V, and integrates easily into wired access control systems.
Tested to over 1,000,000 activation cycles and certified through aging tests, this exit button delivers long-term reliability. The non-breathable LED enhances visibility without compromising its sealed design.

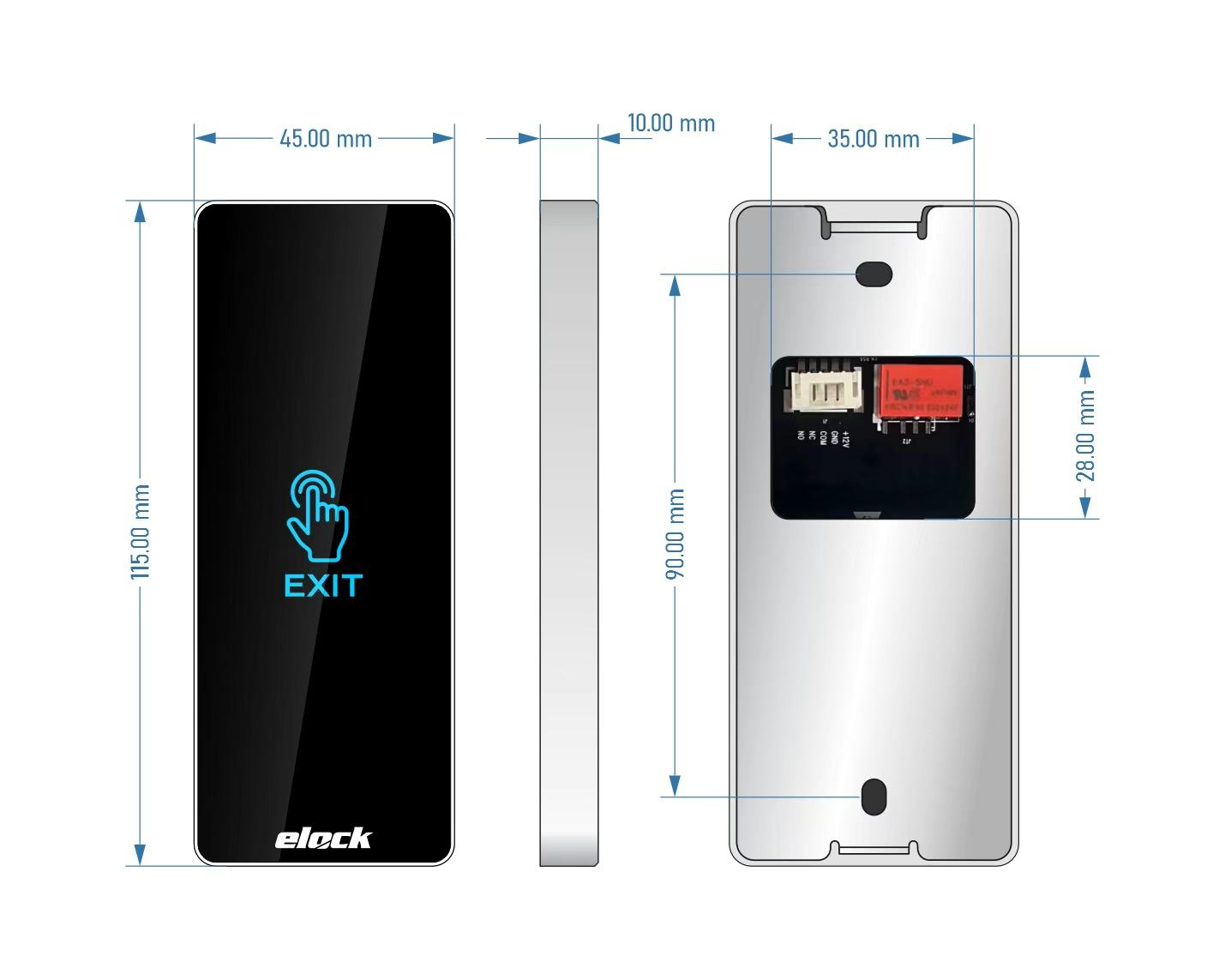

Its compact dimensions (115 x 10 x 45 mm) make it an ideal fit for narrow surfaces or sleek wall installations. The EL-PT4510 is a dependable, weatherproof, and modern solution for secure exits.
- Power Supply : DC12V / DC24V
- Contact Type: N.O/ N.C/ COM
- Frequency: 433.92 MHZ
- Material: Aluminium Frame+ Tempered Glass Panel
- IP Rating: IP67 ( Dust Tight & Waterproof 1m)
- Mechanical Life: 1,000,000 Tested Aging test Qualified
- LED: No Breathing Effect
- Dimension: 115 (H) x 10 (D) x 45 (W) mm
