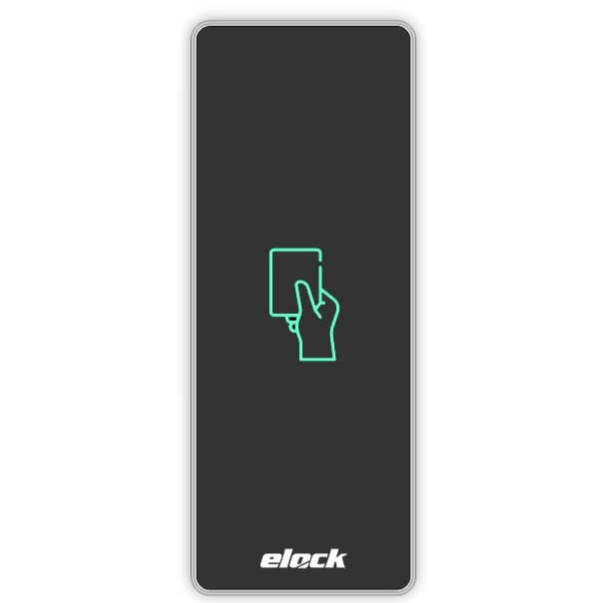

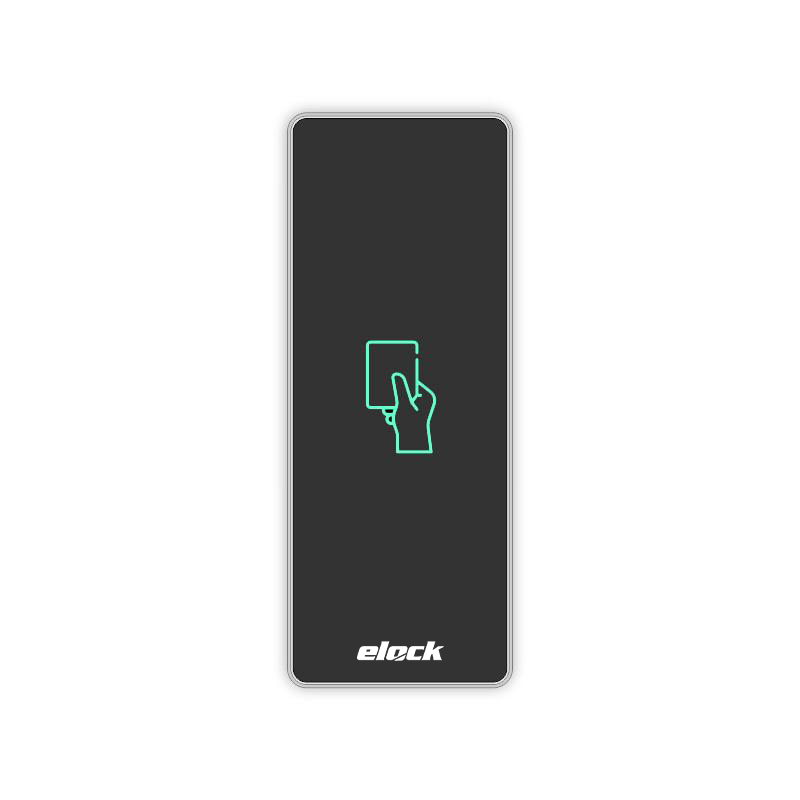

EL-CR45 Waterproof IC/ID Card Reader (Dual)
The EL-CR45 is a versatile access reader that supports both IC (13.56MHz Mifare) and ID (125kHz EM) cards, offering excellent flexibility for a wide range of access control applications.
While most card readers in the market are made from plastic, the EL-CR45 features a durable metal frame and tempered glass panel, delivering a premium finish and enhanced durability for tough environments.
With a Wiegand output range of 26–66 bits, it integrates smoothly with most access control systems, making it a reliable and future-ready choice for professional installations.
Built for outdoor and demanding use, the IP67 waterproof rating ensures the EL-CR45 withstands dust, water, and harsh conditions—perfect for projects where performance, longevity, and design all matter.
- Card Type: IC (13.56MHz Mifare) & ID (125kHz EM) Cards
- Reading Distance: 2-5 CM
- Input Voltage : 10-24 VDC
- IP Rating: IP67 ( Dust Tight & Waterproof 1m)
- Wiegand Interface: 26-66 bits

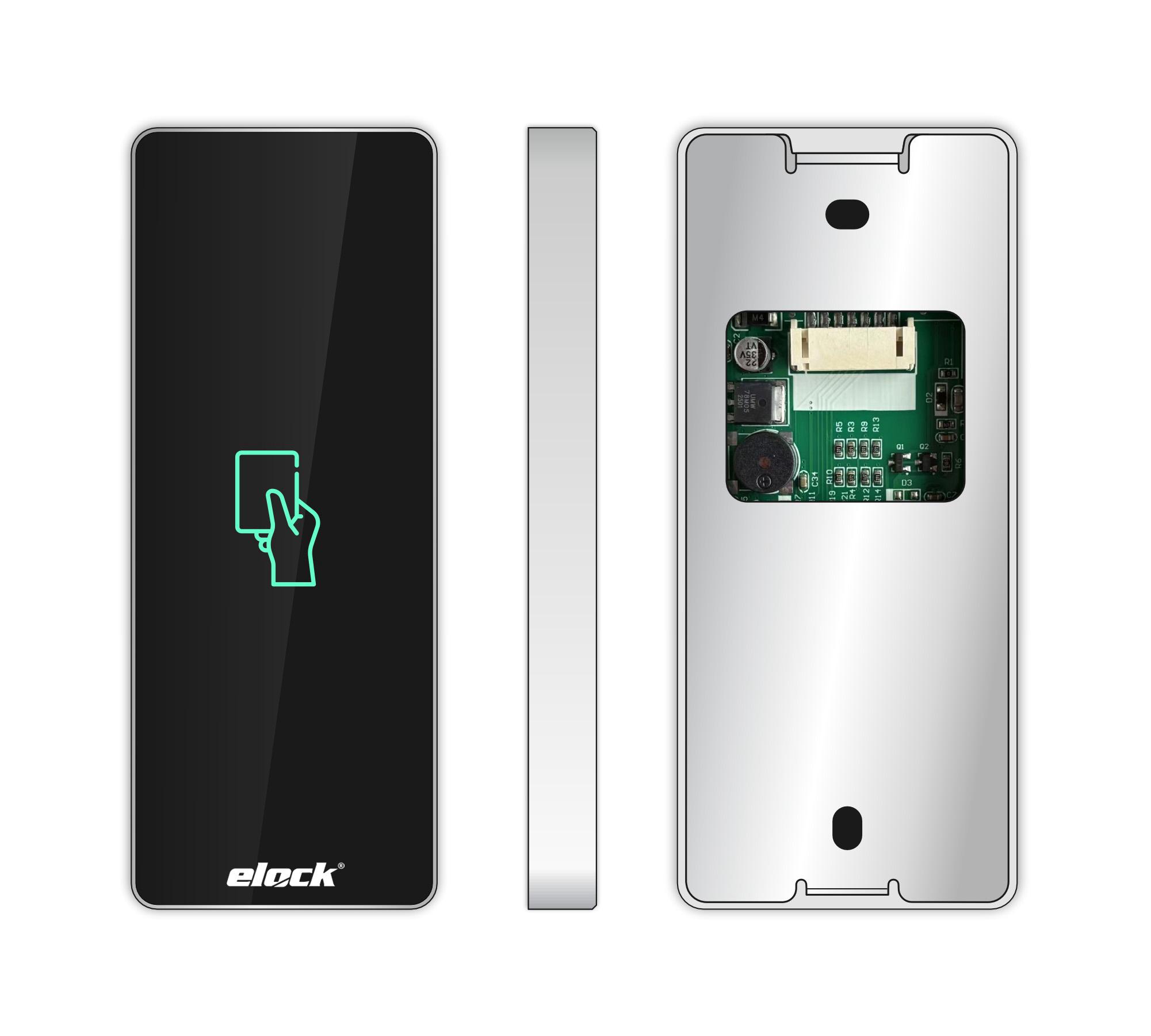

- Material : Metal Frame+ Tempered Glass Panel
- Door Open Options: EM & MF Cards (Dual)

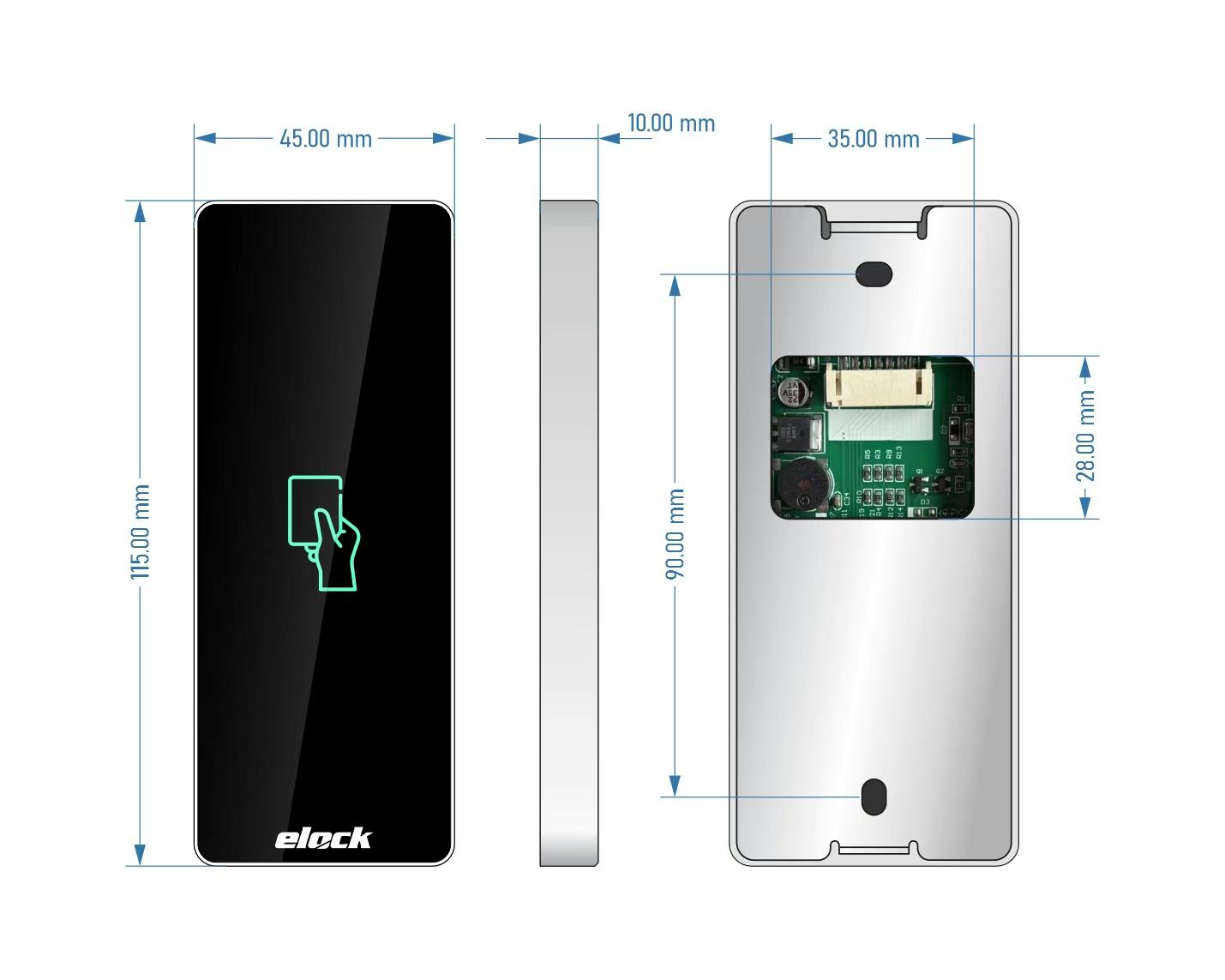

- Dimension: 115 (H) x 10 (D) x 45 (W) mm
