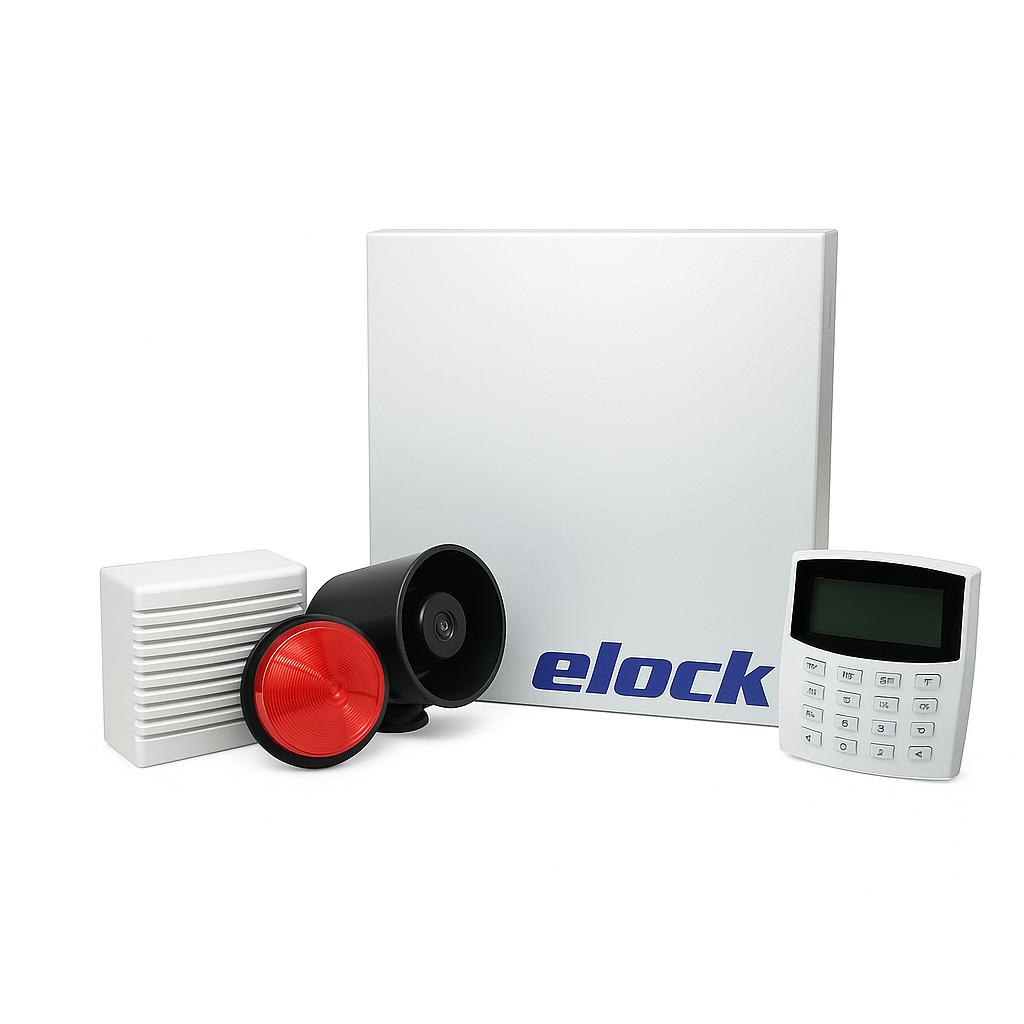

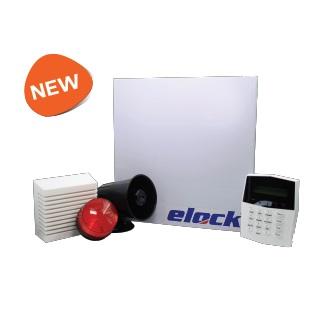

AL5000 10 Zone Smart Home Alarm System

The AL5000 10 Zone Smart Home Alarm System comes with ease of arm and disarm, control and monitoring capabilities, designed to provide a safer, more comfortable living environment for you and your family.

Specification:

  • Power Supply : AC input (16.5VAC, 3A Customized Transformer by ELOCK)
  • Standby Current : Max 900mA
  • Backup Battery : 12VDC, 7AH Rechargeable Battery
  • Strobe Light Output : Max 1A (12Vdc)
  • Siren 1 Output : Max 2A (12Vdc)
  • Siren 2 Output : Max 1A (12Vdc)
  • Auxillary Output : Max 2A (12Vdc)
  • LCD Display : 16×2 Character LCD display with yellow-green backlight
  • Keypad Dimension : (L) 125mm x (W) 100mm x (H) 28.5mm
  • Metal Casing : (L) 290mm x (W) 280mm x (H) 76mm
  • System Reset Button : Mainboard System Restart
  • System Indicator Output : Max 100mA (12Vdc)
  • Dedicated Input : Remote Arming and Disarming

Key Features:

  • 10 alarm zone, expandable to 16 zones
  • Auto detection of system failed status
  • Remote call in control
  • Alarm trigger call-out function
  • Multiple keypads connection (Max.4)
  • LCD keypad for convenient operation
  • 50 event logs with time, date and year
  • 2 x partition
