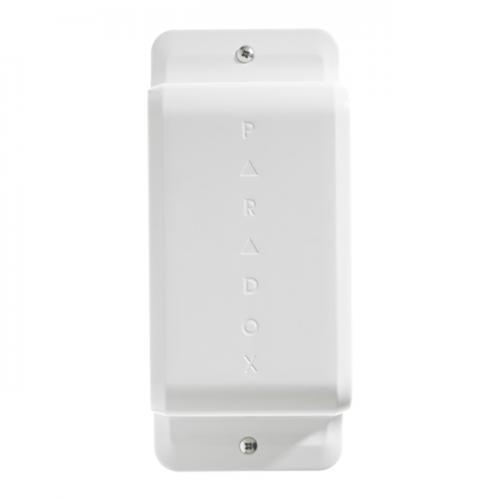

NV780 Outdoor Dual Side-View Detector with 4x Dual Sensors

Advanced Digital Technology:

  • Two double passive infrared motion detector with eight narrow detection beams, managed by Full Authority Digital Electronics Control (FADEC)
  •  High-resolution and full dynamic range digital signal conversion
  •  High-speed, advanced algorithm digital signal processing
  •  Digital EMI / RFI interference rejection
  •  True Pet Immunity, up to 40kg (90lb)

Advanced Optical Technology:

  • 4x dual element sensors arrangement
  • High efficiency long focal point (1.77″) lens, providing long-range narrow beams
  • 2 pairs of narrow beams per side provide 2x signals per protected area crossing for increased “catch” and false alarm rejection
  • Combination optics of mirror reflector and 2nd generation Fresnel “LoDiff” Lens
  • Increased white light rejection



Easy Installation and Setup:

  • Single or Dual Zone operation modes: two sides can report to a single zone or to two separate zones
  • Optical and digital range adjustments
  • Bright LED and buzzer indicator for clear adjustment feedback
  • No need for PCB removal
  • Wall-mount, with built-in level tool
  • In-field firmware upgradable via serial port
