Touch Keypad Fingerprint Reader

Specification:

• Input Voltage : 12V to 24VDC
•  Current Consumption : ≤ 100mA
•  Operating Temperature : −40⁰C ~ +60⁰C
•  Card Type : 125kHz EM card
•  Wiegand Interface : Wiegand 26 bits
•  Indication : Buzzer and LEDs (Red and Green)
•  Lock Output Load : ≤ 1A
•  User Capacity : 10000 card user | 600 fingerprint
•  Access mode : card | code | fingerprint | multiple combination
•  Dimension : 139 x 70 x 20 mm
•  Unit Weight : 200g

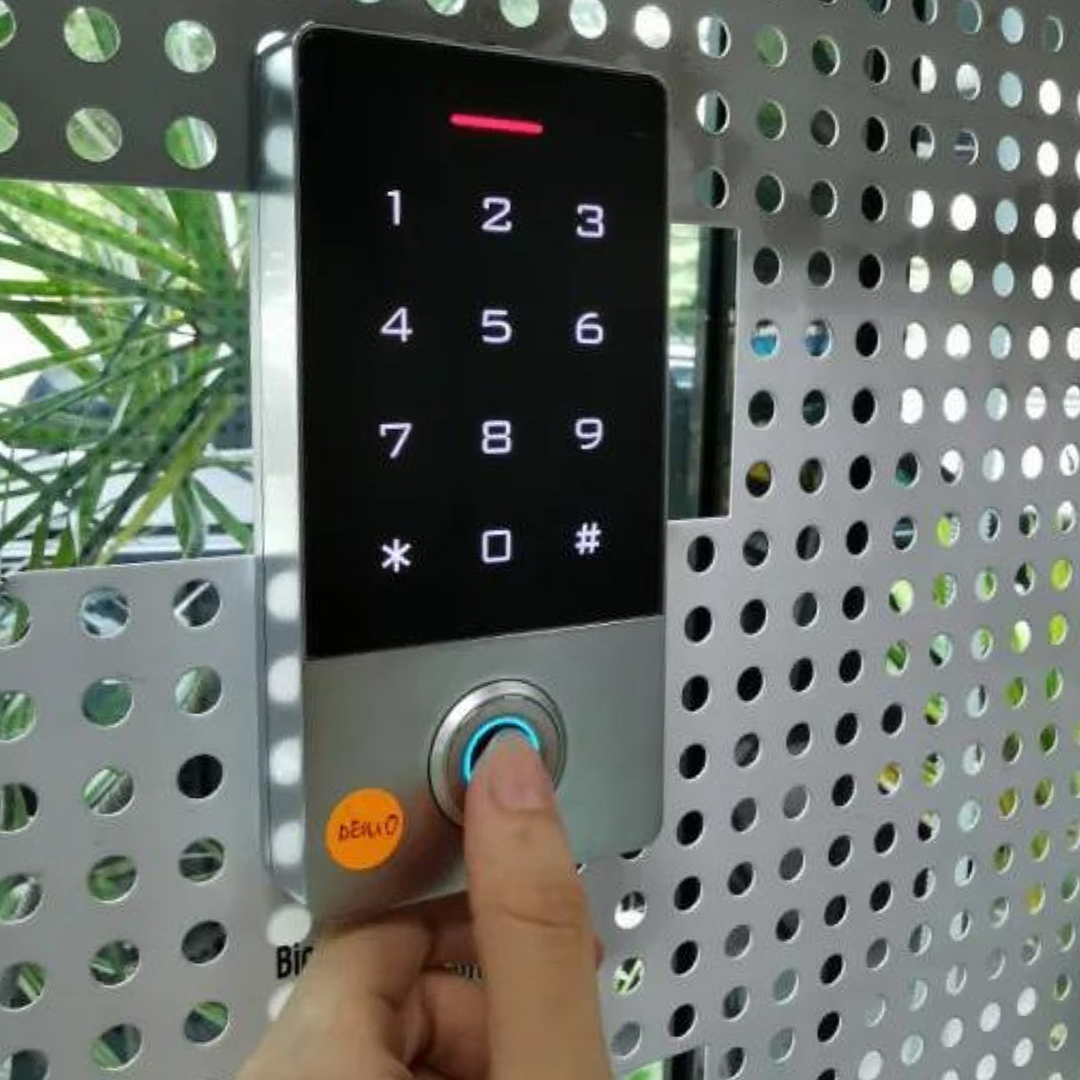

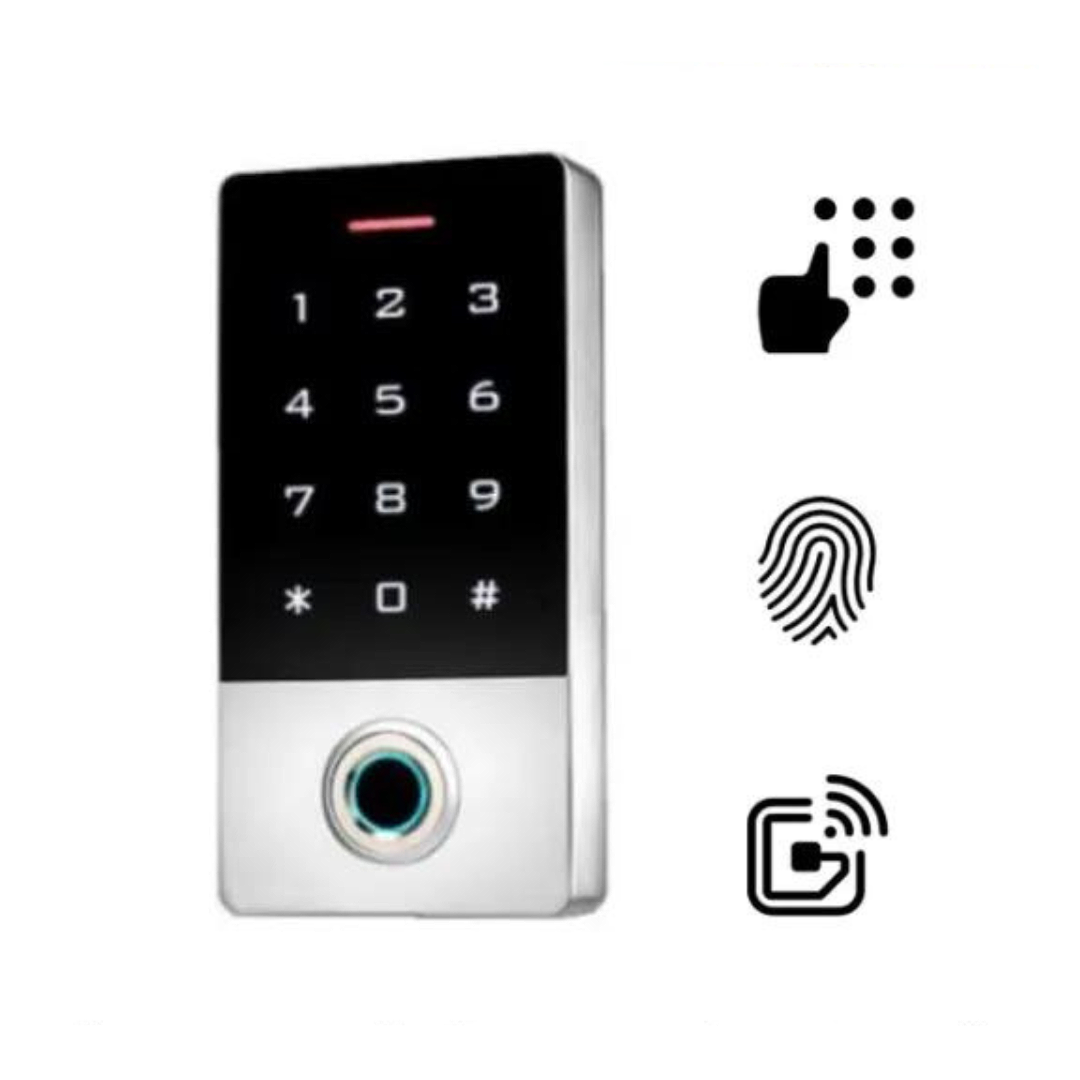

EL-TF1EM-W touch keypad fingerprint reader is fully capable of all the basic access control functionality, vandal proof, weatherproof with stylish design. Ideal for single door access control system.

Key Features:

• Standalone device – ideal for single door system, controlling electric lock, security system
• Verify via fingerprint, code or card
• Vandal proof zinc alloy case
• Weatherproof design
• Wiegand26 Output
• Multiple access mode operation
