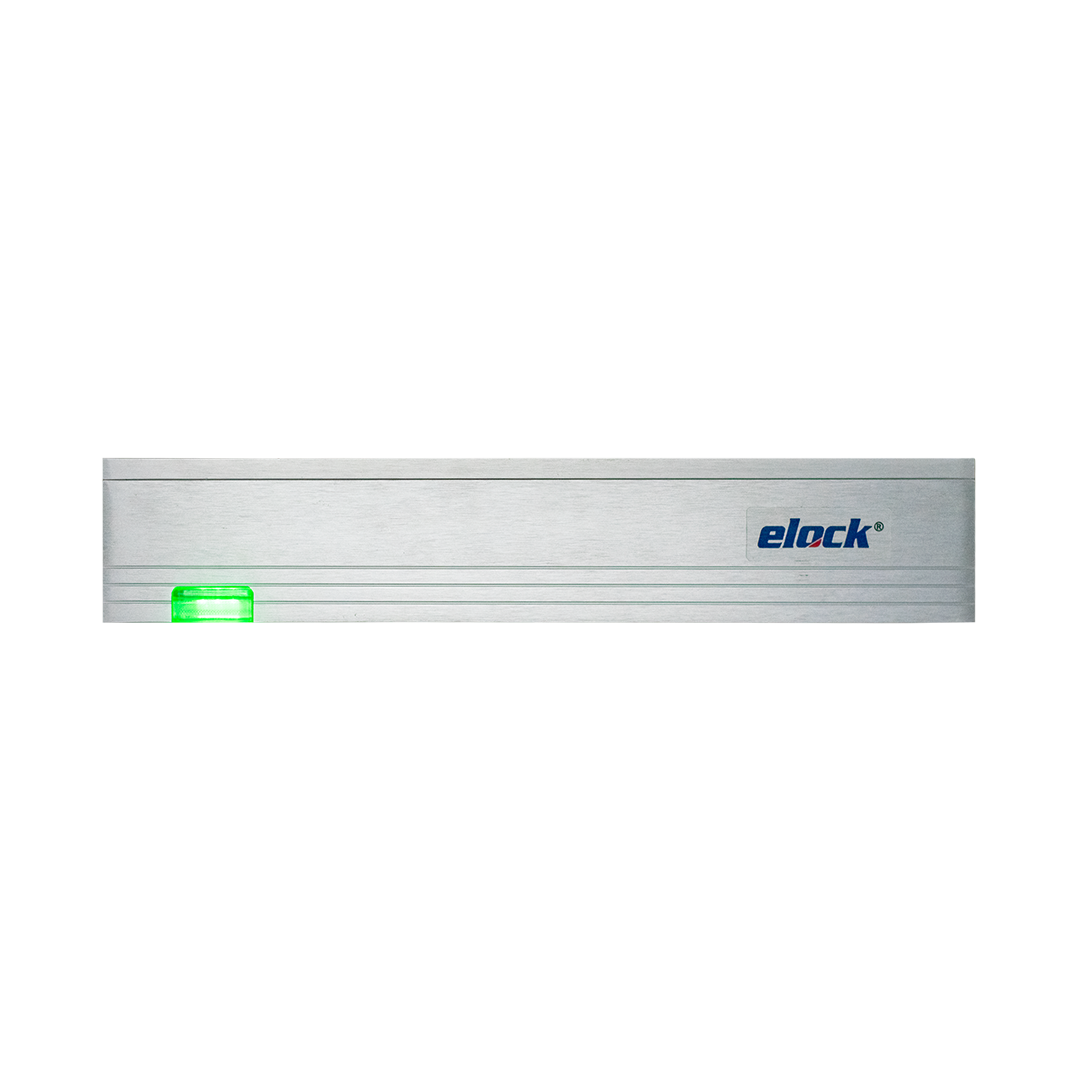

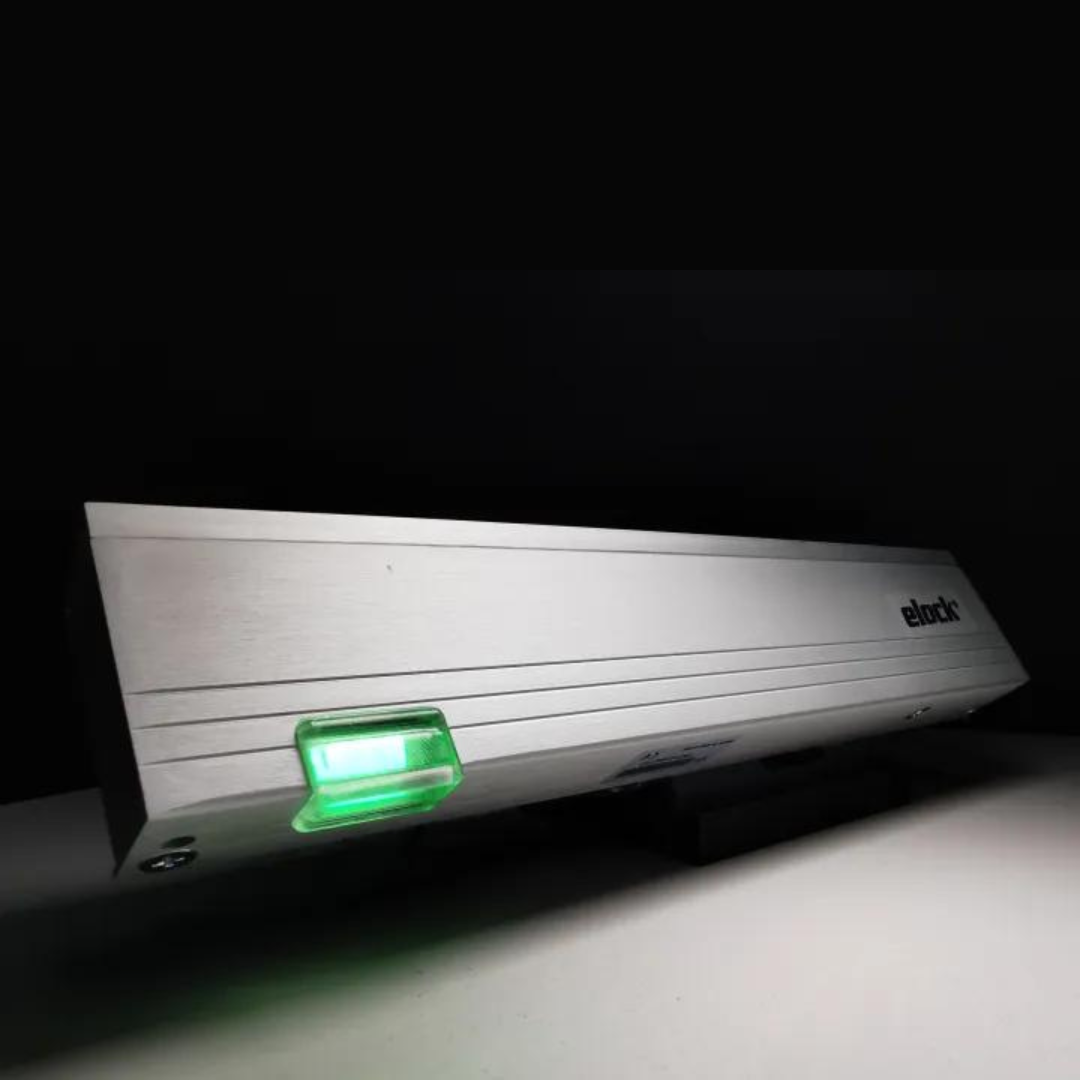

ELOCK-600SM Smart Series is next generation EM lock. A visible Bi-Color (Red & green) LED bar indicates the door locking status open or closed. The lock Build in re-locking timer to re-lock again after preset time delay. The timer can be set from 0 ~ 30 seconds.

  • Specification: Holding Force : 600lbs
  • Dual Voltage 12 & 24VDC (Auto Switchable)
  • Current Drawn : 500mA (12VDC) / 250mA (24VDC)
  • MOV Surge Current Protection
  • Lock Type: Fail-Safe Type
  • Push-off Button On Armature For Instant Release
  • “L” Bracket and “Z” Brackets Available for Easy Mounting
  • Dimension : Magnet : 250(L) x 41(W) x 26(D) mm; Armature Plate : 170(L) x 38(W) x 11(D) mm

Optional Accessories:-

  • EL-BK-L600 L Bracket
  • EL-BK-U600 U Bracket
  • EL-BK-Z600 ZL Bracket

Product Code : ELOCK-600SM
