ELOCK-1200SM EM Lock

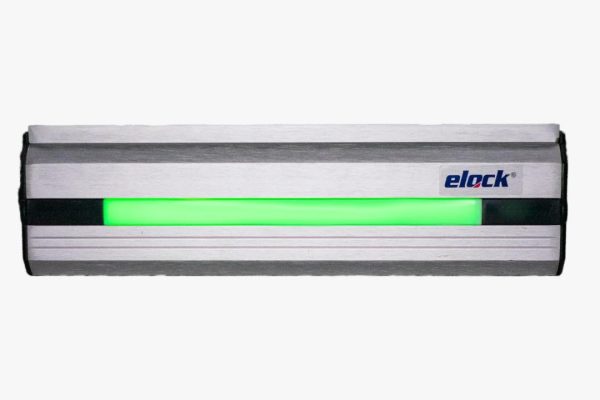

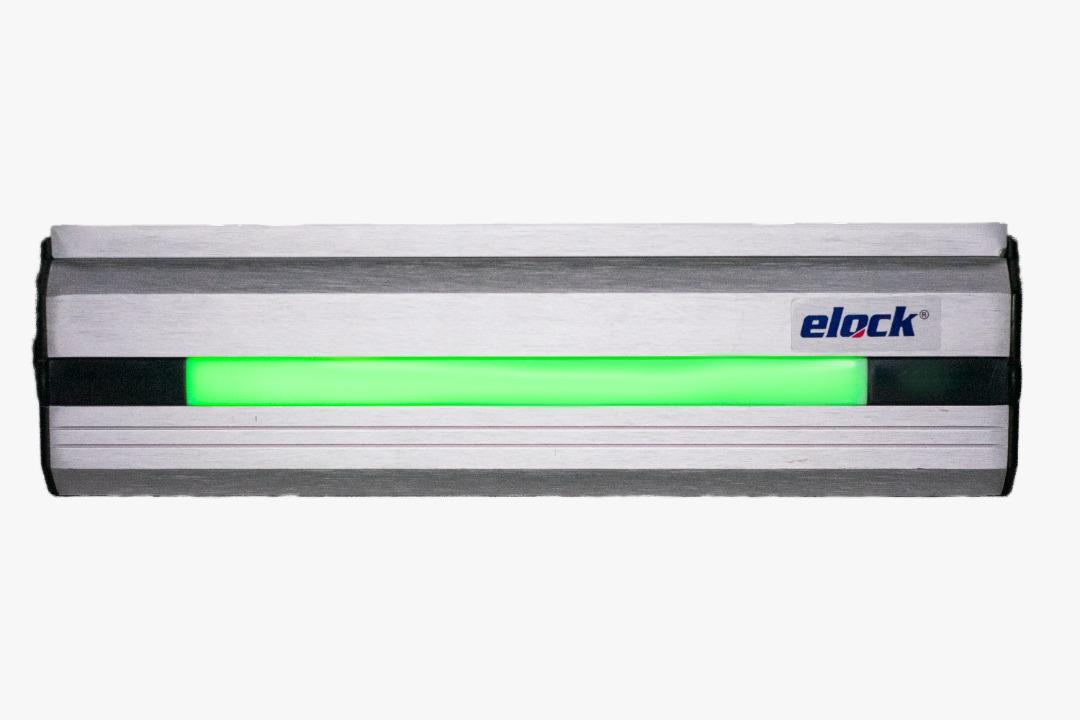

ELOCK-1200SM Smart Series is next generation EM lock. A long visible Bi-Color (Red & green) LED bar indicates the door locking status open or closed. The lock Build in re-locking timer to re-lock again after preset time delay. The timer can be set from 0 ~ 30 seconds.


  • Holding Force : 1200lbs
  • Dual Voltage 12 & 24VDC (Auto Switchable)
  • Current Drawn : 500mA (12VDC) / 250mA (24VDC)
  • MOV Surge Current Protection
  • Lock Type: Fail-Safe Type
  • Push-off Button On Armature For Instant Release
  • “L” Bracket and “Z” Brackets Available for Easy Mounting
  • Dimension : – Magnet : 265(L) x 66(W) x 40(D) mm
  • Armature Plate : 185(L) x 60(W) x 17(D) mm
  • Optional Accessories: EL-BK-L1200 L Bracket; EL-BK-Z1200 ZL Bracket
  • Product Code : ELOCK-1200SM
